15m/Min Woodworking Edge Banding Machine For PVC Board

Name: 15mMin Woodworking Edge Banding Machine For PVC Board
Brand: OSETMAC
Price: 1 USD

China 15m/Min Woodworking Edge Banding Machine For PVC Board wholesale

Brand Name : OSETMAC

Model Number : SYS-320B

Certification : CE

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiate

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30000set per year

Delivery Time : 5-8 work days

Packaging Details : wooden case or as request

Contact Now

15m/Min Woodworking Edge Banding Machine For PVC Board

The Woodworking Edge Banding Machine is used for edging the panel furniture ,it is used for covering the materials like PVC ,veneer ,wood on the edge of the panel furniture like MDF ,PLYWOOD ,partical board etc

Woodworking Edge Banding Machine SPECIFICATIONS
Model	SYS-320B
Panel Thickness	10-60mm
Edge Band Thickness	0.3-3mm
Panel Width	≥60mm
Panel Length	≥150mm
Feeding Speed	15m/min
Working Pressure	0.6Mpa
Voltage	380V/50HZ/3PH
Gluing Motor	0.37KW/50HZ/1400RPM
End Cutting Motor	0.37KW * 2/200HZ/12000RPM
Fine Trimming Motor	0.75KW * 2/200HZ/12000RPM
Buffing Motor	0.37KW * 2/50HZ/1400RPM
Conveyor Motor	1.5KW
Glue Pot Heating Power	1.5KW
Assistant Heating Power	0.3KW
Lighting Power	0.05KW
Total Power	6.7KW
Dimension	3650x770x1450mm
Wooden Case Package	3700x870x1700mm

15m/Min Woodworking Edge Banding Machine For PVC Board

Product Tags:

15m/Min Woodworking Edge Banding Machine

PVC Board Woodworking Edge Banding Machine

15m/Min pvc edge banding machine

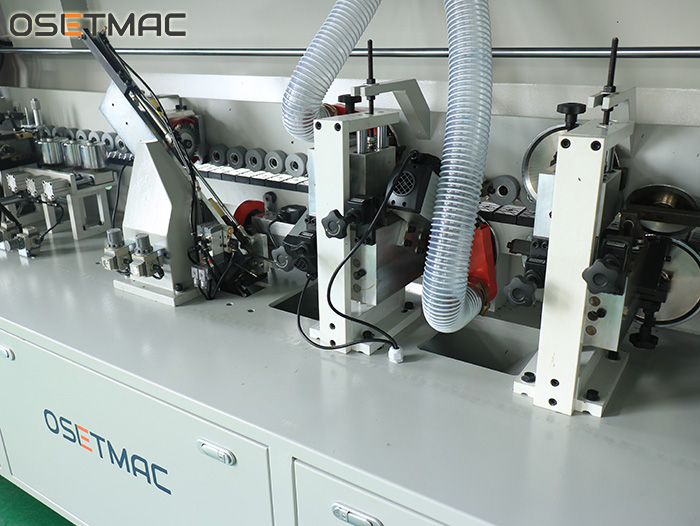

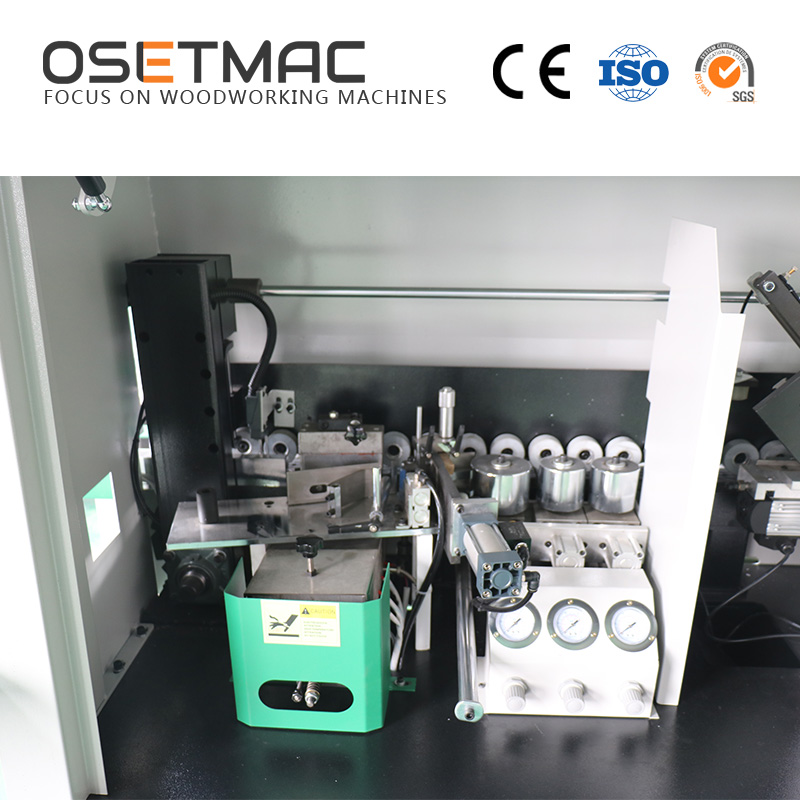

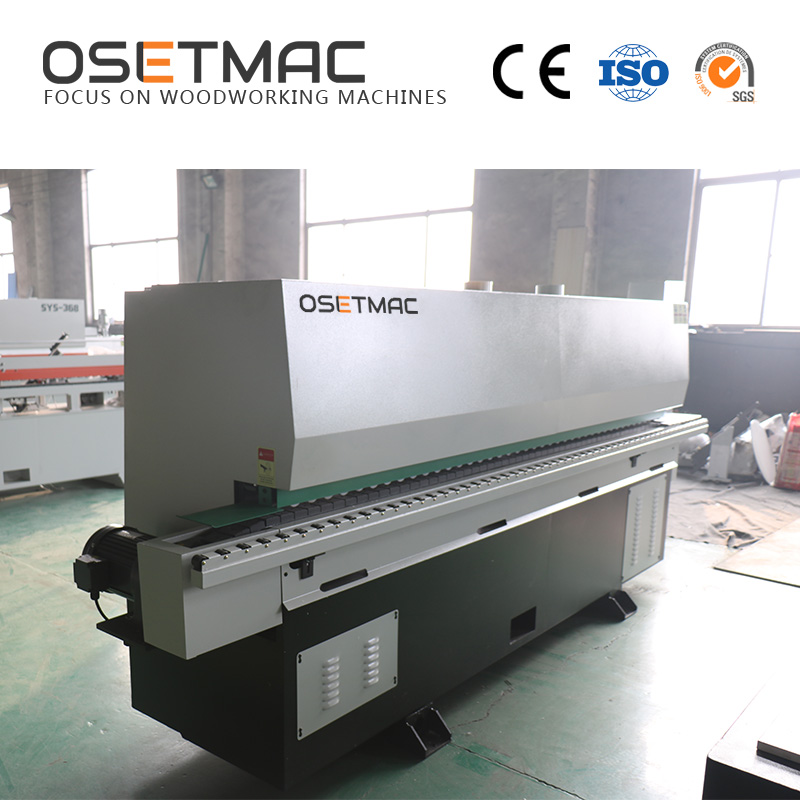

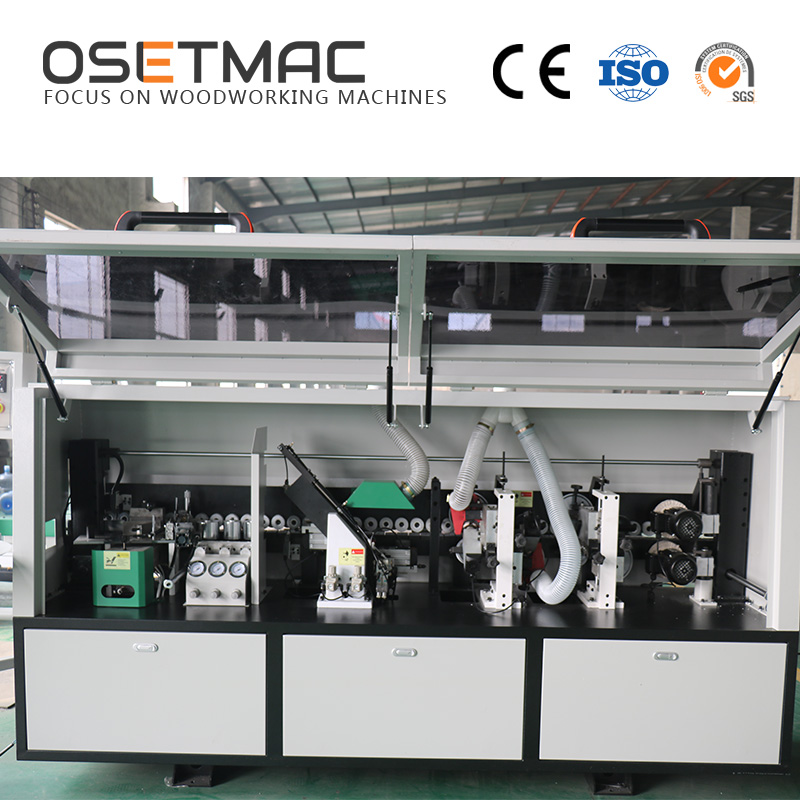

15m/Min Woodworking Edge Banding Machine For PVC Board Images
