Precision Woodworking Electric Sliding Table Panel Saw Max. Length of Workpiece mm 3100mm

Name: Precision Woodworking Electric Sliding Table Panel Saw Max Length of Workpiece mm 3100mm
Brand: OSETMAC
Price: 4 USD

China Precision Woodworking Electric Sliding Table Panel Saw Max. Length of Workpiece mm 3100mm wholesale

Condition : New

Type : Panel Saw

Use : Woodworking, cutting wood material

Style : Horizontal

Place of Origin : Shandong, China

Brand Name : OSETMAC

Voltage : 220v/380v

Dimension(L*W*H) : 3250*3450*900mm

Warranty : 1 Year

Application : furniture factory, home using, woodworking machinery

Weight (KG) : 800 KG

Power (kW) : 5.5 + 1.1

Key Selling Points : High-accuracy

Max.Cutting Height at 90°(mm) : 80mm

Max.Cutting Height at 45°(mm) : 50mm

Max. Length of Workpiece (mm) : 3100mm

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Construction works

Marketing Type : Hot Product 2019

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor

After-sales Service Provided : Online support

After Warranty Service : Video technical support, Online support

Local Service Location : United States, Viet Nam, Brazil

Showroom Location : Viet Nam, United States, Brazil

Certification : CE ISO

Packaging Details : WOODEN CASE PACKING stretch film

Port : Qingdao, China

Supply Ability : 5000 Set/Sets per Year

Price : $4,880.00/sets 1-3 sets

Contact Now

Product Description

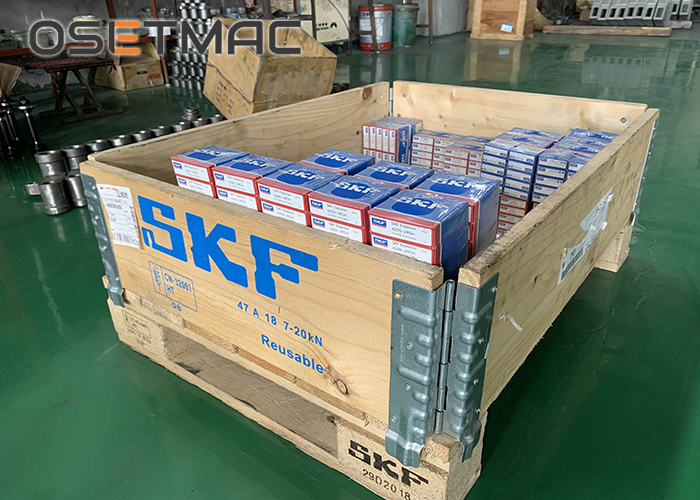

*Full Digital readout in this machine * Full electric lifting for main saw blade and scoring saw blade and also tilting. * This machine uses linear guideway to lift the saw blade. * All bearings in this machine are all imported SKF brand. * The table is made of fully-extruded, anodized aluminum. * With cast-iron main table and broaden extension table. * Fine adjustment range is between 0-10mm.

Precision Woodworking Electric Sliding Table Panel Saw Max. Length of Workpiece mm 3100mm

Sliding Table Dimension	3200*390mm
Cast Iron Table Dimension	91062080mm
length extension table	90568070mm
width cutting extension table	64068070mm
Main Saw Diameter	300mm
Main Saw Blade Diameter Maximum	350mm
Main Saw Bore Diameter	30mm
Max. Cutting Height With Bade at 90	80/100mm（φ300/350）
Max. Cutting Height With Bade at 45	50/70mm（φ300/350）
Main Motor Power	5.5KW
Main Blade Speed	4000/6000RPM
Scorning Saw Blade Diameter	120mm
Scorning Saw Bore Diameter	20mm
Scorning Saw Motor Power	1.1KW
Scorning Blade Speed	8000RPM
Max. Cutting Width	1250mm
Max. Cutting Length	3100mm
Blade Tilting Adjustment	0-45°
Main Saw Height Adjustment	Electric
Scorning Saw Height Adjustment	Electric
Dust Guard Outlet Diameter	80mm
Dust System Outlet Diameter	100mm
Dimension of Wood Packing Carton	225012001100mm(Main Crate )
		3400450290mm(Sliding Table)
Dimension	32503450900mm
G. W.	800KG

Detailed Images

Packing&Shipping

After Sales Service

Free training for cutomers, guiding the installation, explaining the operation points,establishing customers information files.

Company Introduction

Qingdao OSET International Trading Company is a professional manufacturer of woodworking machinery with research and development, manufacturing, sales and marketing. We have complete equipment, strong technical force and professional technicians. We can provide designing and manufacturing according to customer's needs.

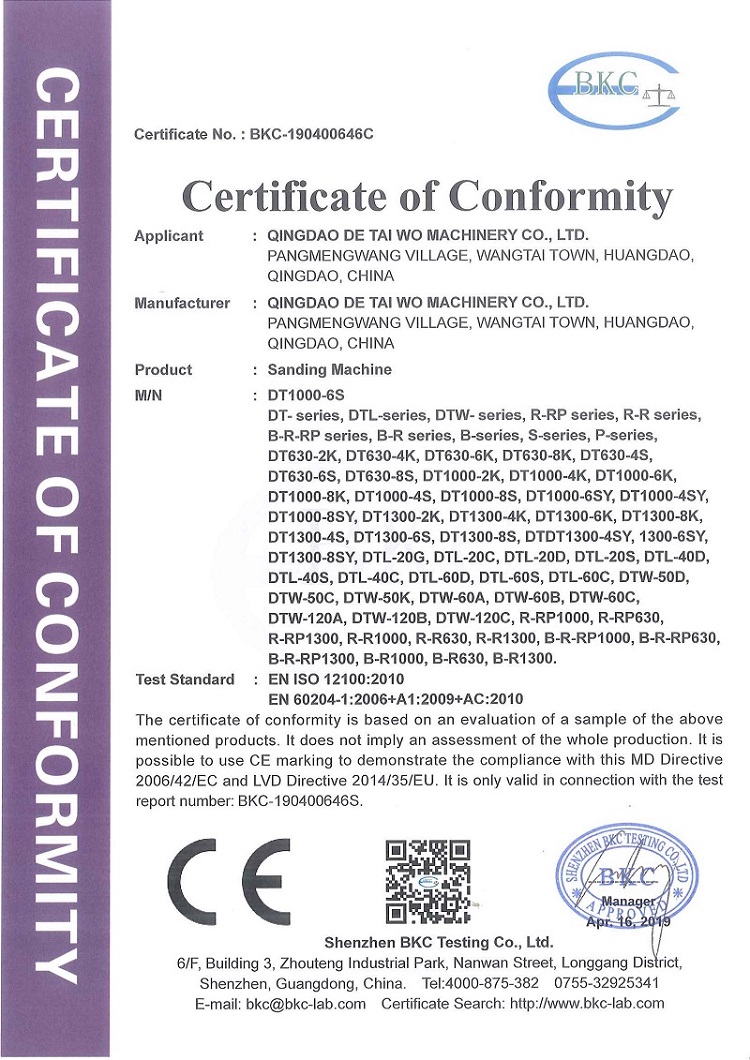

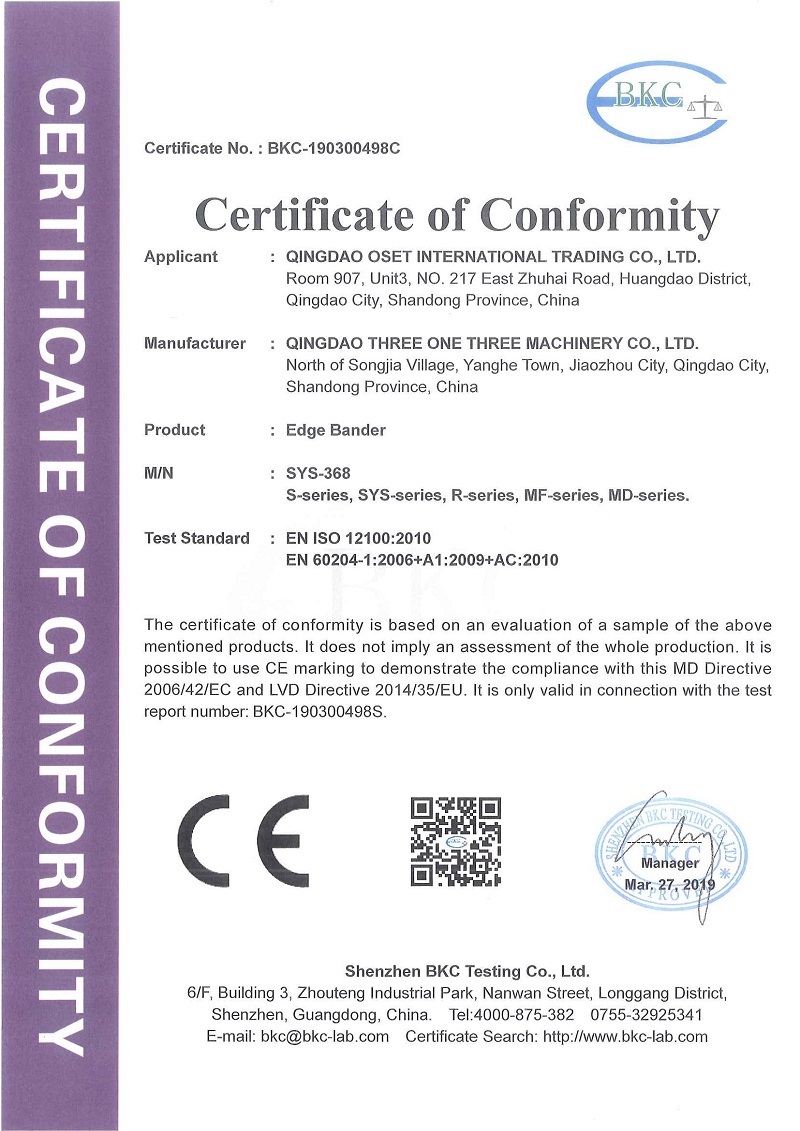

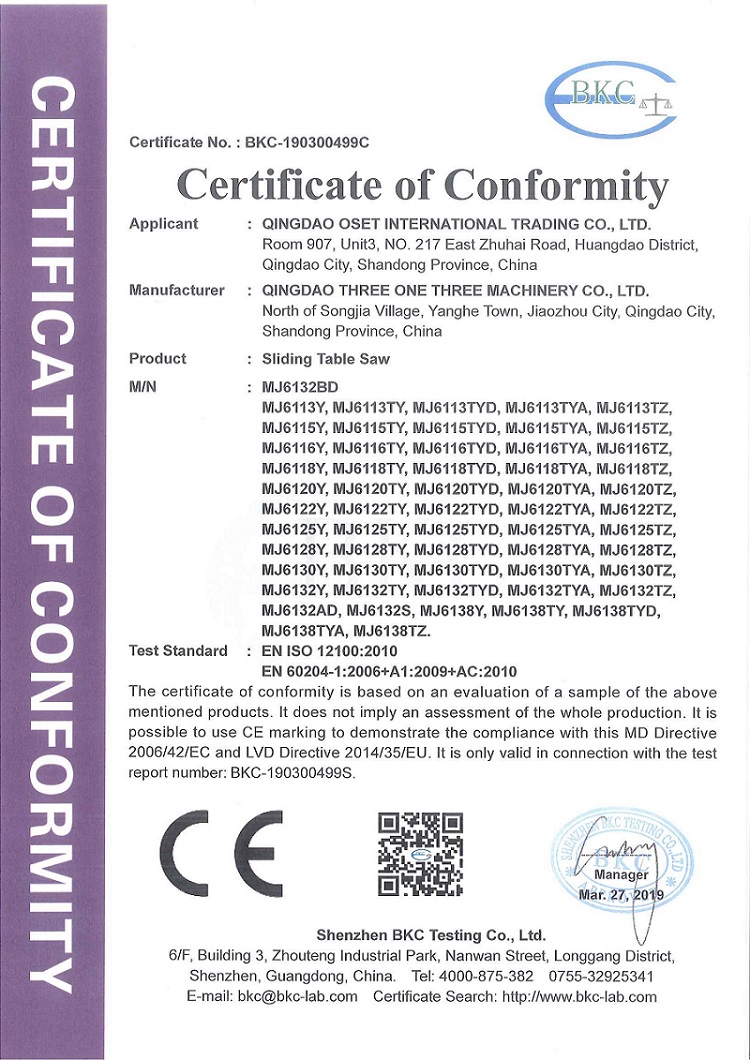

Our Certifications
